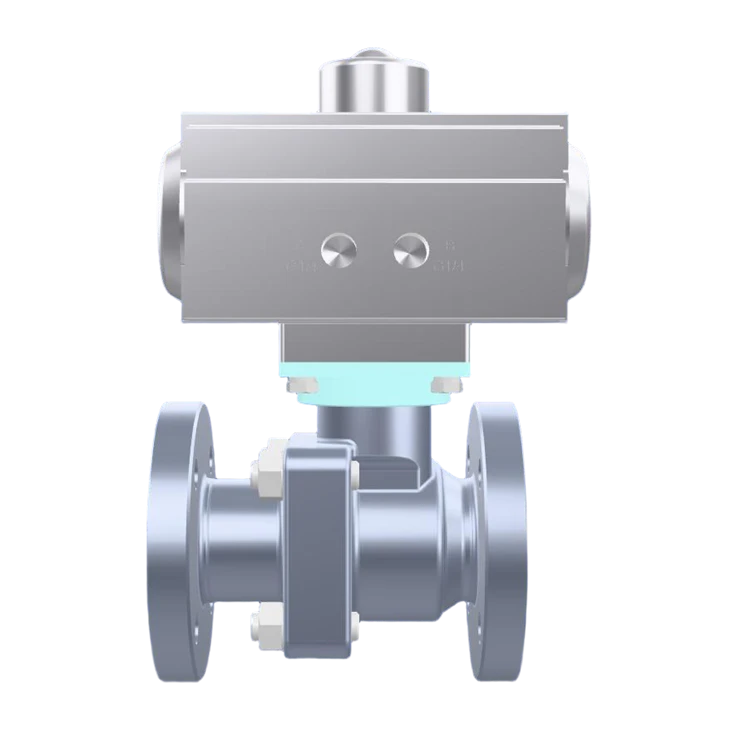

DN25 Aluminum Alloy Ball Valves
The DN25 Aluminum Alloy Ball Valve is a lightweight ball valve configuration documented with manual and/or pneumatic actuation options depending on the model. The valve uses a preloaded Belleville seal seat designed to maintain sealing pressure and compensate for seal-face wear and changes in temperature and pressure.
Automatic spring-return mechanism for emergency shutoff
Corrosion-resistant stainless steel ball valves for harsh environments
- Product Introduction
Product Overview
The DN25 Aluminum Alloy Ball Valve is a lightweight ball valve configuration documented with manual and/or pneumatic actuation options depending on the model. The valve uses a preloaded Belleville seal seat designed to maintain sealing pressure and compensate for seal-face wear and changes in temperature and pressure.
|
Actuation Type |
Operating Description |
Model |
|
Manual |
Manual operation. |
ATL48050901 |
|
Single-Acting Pneumatic |
Port A pressurized: valve opens; Port A exhausted: valve closes automatically. |
ATL48050902 |
|
Double-Acting Pneumatic |
Port A pressurized: valve opens; Port B pressurized: valve closes. |
ATL48050903 |
Key Design Features
· Preloaded Belleville seal seat for continuous sealing pressure.
· Automatic compensation for seal-face wear.
· Effective sealing over changes in pressure differential and temperature.
· Double sealing at the inlet and outlet.
· Fluorosilicone rubber seals with oil resistance and aging resistance.
· Flexible and lightweight operation.
· Automatic pressure relief when abnormal pressure builds up inside the valve cavity.
Technical Specifications: Industrial Ball Valves
|
Parameter |
Specification |
|
Nominal Diameter |
DN25 |
|
Valve Body Material |
Aluminum Alloy |
|
Working Pressure |
1.0 MPa |
|
Temperature Range |
-40°C to +80°C |
|
Seal Material |
Fluorosilicone Rubber |
|
Actuation |
Manual, Single-Acting Pneumatic, Double-Acting Pneumatic |
|
Control Air Pressure |
0.4 MPa for pneumatic models |
Product Details
ATL48050901
ATL48050902
ATL48050903
Pneumatic Actuation
For the documented pneumatic models, the control air pressure is 0.4 MPa. The single-acting version opens when Port A is pressurized and closes automatically when Port A is exhausted. The double-acting version uses separate air control through Port A for opening and Port B for closing.
Service & Support
Provide one free sample for customers to test
1-year warranty (1 year for seals)
Global 48-hour emergency response
