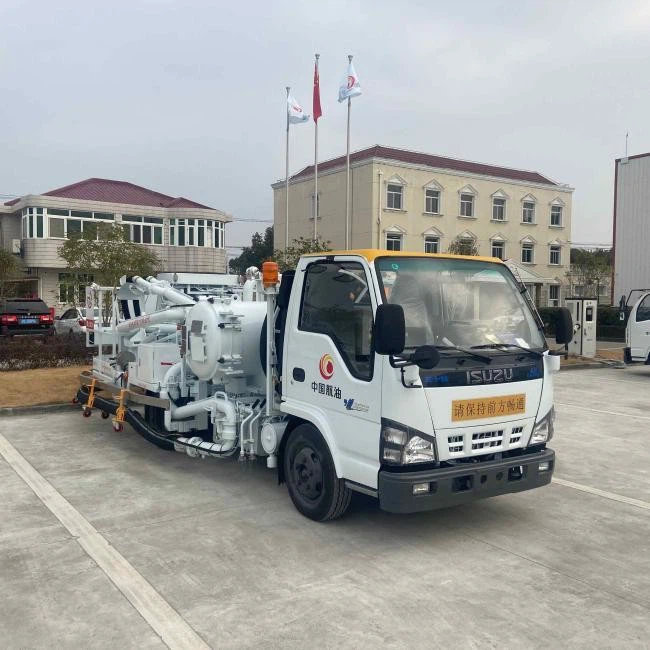

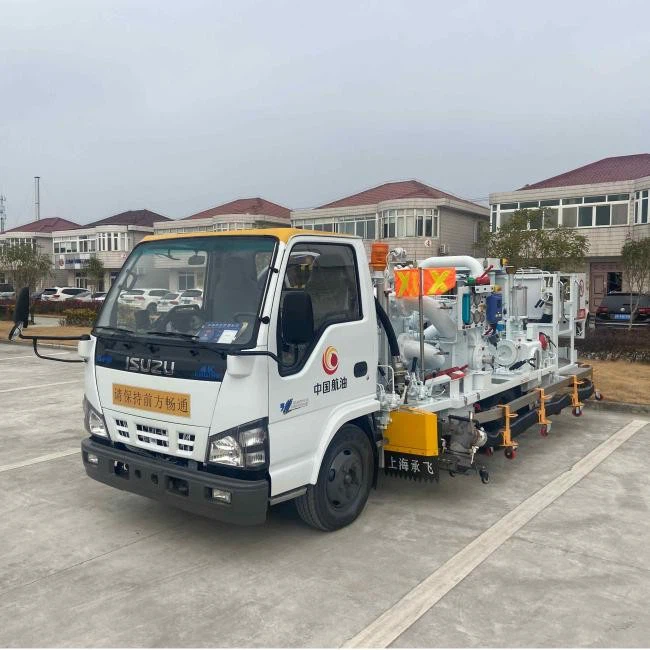

Hydrant Dispenser(Low-height version)
ITEMS: Aicraft Hydrant Dispenser(Low-height version)
Standard Dimensions(mm)：
6825(L)*2740(W)*2000(H)
Chassis type: QingLing600P
Dual-hose refueling (up to 3600L/min)
Single-hose refueling (up to 1200 L/min)
±0.2% flow meter accuracy
- Product Introduction
Product Introduction

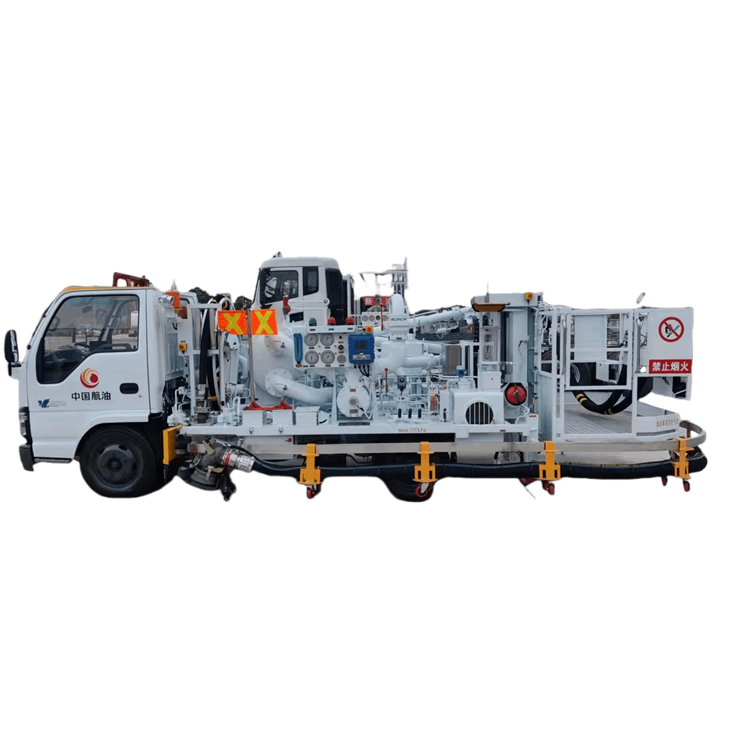

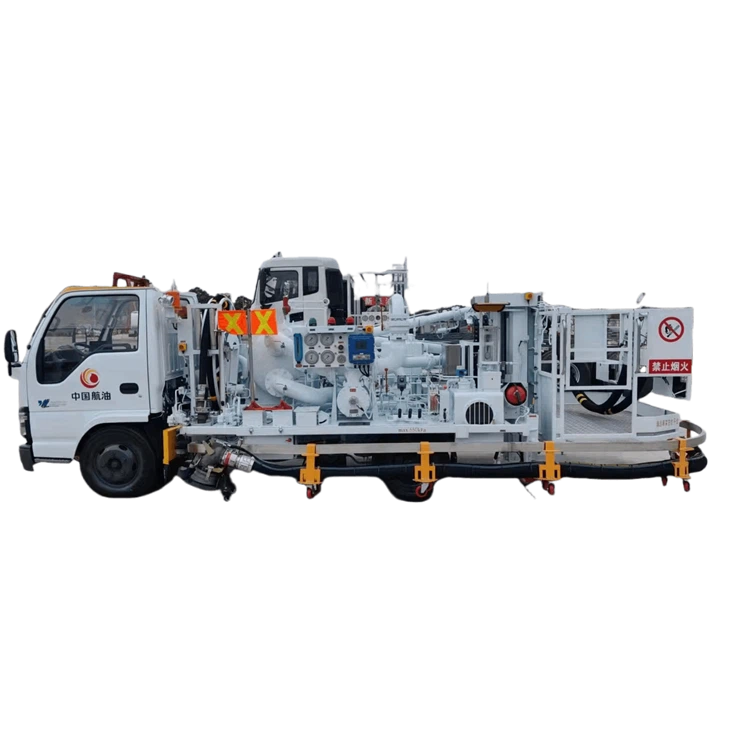

CF5061GXJYNKR Aircraft Hydrant Dispenser mainly consists of chassis, piping system, pneumatic control system, hydraulic system, and electrical system, etc. It is capable of providing effective refueling services for various kinds of aircrafts at a high flow rate. During filling, the dispenser removes impurities, dust and moisture through filtration and flow rate is accurately measured.Comparing to the CF5060TJYGX Aircraft Hydrant Dispenser, this vehicle is only 2 meters high, which is also known as "low-attitude" hydrant dispenser, can perform underwing refueling service more effectively towards most aircrafts with a wide range of sizes.
product parameters
| Products name | Hydrant Dispenser | Lifting Range |
685 ~ 3,970 mm (Adapts to wing heights ≤3.97m) |
| Products model | CF5061GXJYNKR | Max Flow Rate (Dual Hose) | 3,600 L/min |
| Chassis type | ISUZU 600P | Max Flow Rate (Single Hose) | 1200 L/min |
| Overall Dimensions (L×W×H) |
6,825 × 2,740 × 2,000 mm |
Hydrant Pit Hose | 4" × 10 m |
| Curb Weight | 5,920 kg | Reel Hose (2.5") Length | 2.5" × 18 m |
| Filter Standard | Compliant with EI 1581 (Latest Edition) | Deck Hose (2.5") Length | 2.5" × 3 m |
| Rated Working Pressure | 1 MPa | Flow Meter Accuracy | ±0.2% |
Major Function
Hydrant dispenser with opearational flexibility to refuel the largest commercial aircraft or the smallest regional jets.
Fueling aircraft could be fueled via double deck hose or single reel hose after filtration and measurement.
Flowrates up to 3,600LPM through the twin deck hoses, with a platform reach of 4.08m facilitating refuelling of the Boeing 737. Alternatively, a flowrate of up to 1,200 LPM is possible through the single hosereel..
Intake Coupler & HEPC Choice of Avery Hardoll, Carter or Whittaker.
Filter/water monitor or filter/water separator compliant with the latest edition of EI 1581 standard.
