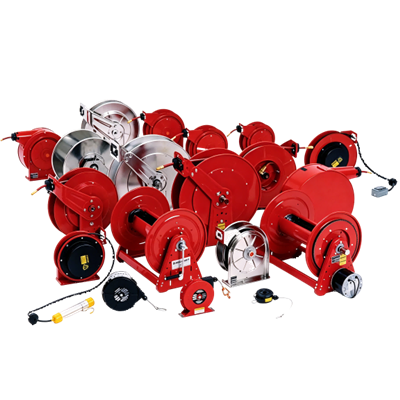

Reel & Bonding Equipment

Your Professional Bonding Equipment Supplier

Xiamen XINZ Mechanical Technology Co., Ltd. was founded in 2015. We are a professional aviation fueling product supplier in China. Our company has established strict quality management systems and procedures. So far, XINZ has become one of the most important aviation fueling products and maintenance suppliers for more than 20 airports in China. It is our aim to provide high-quality aviation fueling products and maintenance services to our customers to enhance safety management in airports.

First 12 Last 1/2

Why Choose Us

Strict Management

Our company production system has been certified by ISO certification, 100% quality testing.

Production Market

Our products are exported to a wide range of China, Russia, Japan, US.

Product Application

Our products are mainly used in the following areas of the world where safety are a key concern:Fueling service,Oil refining industry,Chemical industry.

Our Service

Configuration confirmation, datasheet, quotation, logistics, end-user training, hydrant equipment maintenance and spares service.

Features of Static Grounding Equipment

Heavy-duty design holds up to field use demands.

Ground the work area to increase operator safety.

Heavy-duty cable with 7 foot working distance.

Set screw lugs enable cable repair by operator.

Technical parameters

Serial Number	Technical requirements	Unit	Technical parameters
1	Installation mode		Indoors/Outdoor


2	Operation mode		Electric (Manual)


3	Number of poles		Unipolar

4	Nominal operating voltage	kV	DC 0.75、DC 1.5
5	Rated operating voltage	kV	DC 0.9、DC 1.8
6	Rated short-time withstand current	kA	80（0.25s）

7	Rated peak withstand current	kA	150

8	Resistance value of the main loop	μΩ	≤40

9	Creepage distance	mm	250
10	Temperature rise of silvered switch contacts at the highest ambient temperature	K	≤65
11	Executive standard		IEC 61992-6:2006
12	Dielectric property
12.1	Impulse withstand voltage type	OV4

12.2	Lightning impulse withstand voltage	kV	24（To ground）
			24（Fracture）
12.3	1min Power frequency withstand voltage	kV	11（To ground）
			11（Fracture）
12.4	Rated power frequency withstand voltage of control loop	kV	2
13	Operating mechanism
13.1	Rated control voltage (optional)	V	AC220V/DC220 or DC110
13.2	Control voltage range		0.8～1.1
13.3	Operating power of motor	W	30

13.4	Opening and closing time	S	≤4
13.5	Auxiliary contact (optional)	Pairs	4

14	Mechanical life
14.1	Mechanical life	Times	20000
14.2	Reliable opening and closing times (no adjustment during the period)	Times	≥3000


16	The protection grades		IP4X、IP54

Specifications

Catalog No	Item Code	Description	Weight
Catalog No	Item Code	Description	lbs	kg
PEGR7	04621	Set screw lugs, 7 foot cable	1.3	0.6
PEGRM	04622	Magnet connection, 7 foot cable	0.6	0.3

Ordering Process

Higher quality but lower price

Independent R & D and manufacture control the quality and reduce the cost

ATEX & IECEx approved

Completely international certification.

6S Production Management System

Standardized production management and strict quality control to ensure the 100% qualified rate.

Customized service

Customized MOQ : One piece.

Fast &Timely Delivery

100 pcs standard products are in stock and can be dispatched within one day.

After-service

Free Spare parts and shipping service within the warranty period.

Shipping Process

productcate-754-552

Packing & delivery

Normal Size

6,35 (1/4"). 7,94 (5/16"),9,52 (3/8") 7/0.33mm, 7/0.8mm, 7/1.0mm,7/2.5mm,7/3.6mm.

Name

7/4.0mm Galvanized Steel Wire Rope Earth Wire Guy Wire For Cable.

Packaging

Waterproof plastic film, wooden drum, steel drum or can as customers' requirements.

Delivery

5-15 days according to order quantity.

FAQ

Q: What is a static grounding system?

A: Static grounding systems remove charged static electricity between the bonded object and earth. This is a requirement for facilities operating within hazardous areas, protecting personnel and plant assets from explosions or fires.

Q: What is the purpose of anti static earthing?

A: An anti-static earthing reel, also known as a grounding reel, is a device used to safely ground equipment and prevent the buildup of static electricity in hazardous environments, such as chemical plants, refineries, and other industrial facilities.

Q: How do you ground static energy?

A: One of the easiest ways is to ground yourself by touching something that is connected to the earth, like a water faucet, a radiator, or a metal pole. This will discharge any excess electrons from your body and make you less likely to get shocked.

Q: What size wire is needed for static electricity grounding?

A: 6 AWG copper
Bonding and grounding conductors must be large enough to withstand mechanical damage and must not be smaller than 6 AWG copper. For added flexibility, use braided cable or flexible bonding strap for static grounds on portable or movable equipment.

Q: How do antistatic devices work?

A: Our anti-static bars generate an ionic field that alters nearby air molecules, transforming them into positive and negative ions and neutralizing electrostatic charges. Our bars rely on the accumulation of capacitive charges at each tip.

Q: What are the requirements for static grounding?

A: One must work to dissipate static electricity by providing a path for electrons to traverse. A resistance of 1 megaohm or less is generally considered to be adequate for this path. When metal makes up the bonding/grounding system, the resistance will generally be less than 10 ohms.

As one of the most professional bonding equipment manufacturers and suppliers in China, we're featured by cheap products and good service. Please rest assured to wholesale customized bonding equipment from our factory.

Bonding Equipment, Spring Automatic Retraction Grounding Cable Reel, Grounding Clamp
