25000L Aircraft Refueler
ITEMS: 25000L Aircraft Refueler
Specified capacity, L: 25000
Standard Dimensions(mm)：
10750(L)*2550(W)*3220(H)
Chassis type: BENZ Arocs
Pressurized fueling rate (up to 1000 L/min)
Gravity refueling flow (up to 210L/min)
Defueling reel hose flow(up to 350L/min)
Tank capacity: 25000 L
±0.2% flow meter accuracy
- Product Introduction
Product Introduction

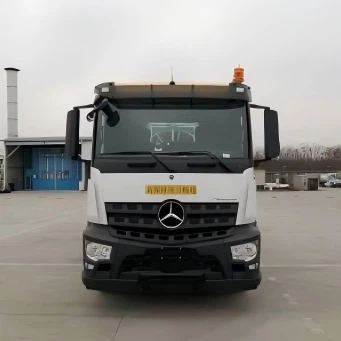

The CF5361GJY Aircraft Refueller (BENZ) is a professional fuel servicing vehicle built on a reliable Mercedes-Benz chassis, integrating a fuel tank, front control cabinet, pumping system, pneumatic system and electrical system into a complete refueling solution. This mobile refueler efficiently transfers aviation fuel between storage facilities and aircraft while ensuring fuel quality through integrated filtration systems that remove impurities and moisture. The system features precise flow measurement capabilities for accurate fuel delivery, meeting strict aviation fuel standards for safe and reliable ground support operations. Its robust design combines mobility with professional-grade refueling performance for various aircraft servicing needs.
product parameters
| Products name | Aircraft Refueller | Rated Capacity | 25000 L |
| Products model | CF5361GJY | Pressurized fueling rate | 1000 L/min |
| Chassis type | BENZ Arocs | Gravity refueling flow | 210 L/min |
| Overall Dimensions (L×W×H) | 10750× 2550 × 3220 mm | Defueling reel hose flow | 350 L/min |
| Curb Weight | 13300 kg |
Pressure coil 2 " hose length |
25 m |
|
Maximum Gross Mass (Factory Specified) |
33430kg |
Gravity reel 1.5 " hose length |
15 m |
| Filter Standard |
Complies with EI 1581 (Last Edition) |
Rated Working Pressure | 0.6 MPa |
| Flow Meter Accuracy | ±0.2% | Operating Temperature | -20°C to +50°C |
Major Function
Aircraft Refueling
Fuel can be transferred from the storage tank to the aircraft via a single-reel hose system.The process includes filtration (particulate/water separation) and precise flow measurement before delivery.Complies with aviation fuel purity and safety standards
Aircraft Derefueling
The same single-reel hose system enables reverse flow operation for defueling or emergency fuel drainage.Recirculated fuel undergoes dual-stage filtration and real-time volumetric measurement.Supports ground-based fuel recovery operations.
Storage Tank Refilling
The vehicle can be replenished with fuel for storage or operational use.Features in-tank circulation mixing to maintain fuel homogeneity and prevent sedimentation.
Options
Choose the plan that suits you best.
HEPC
Avery Hardoll
Carter
Whittaker
Hoses
Elaflex
Trelleborg
Meters
Isoil meter
TCS meter
deadmen
Delta Wireless Deadman
