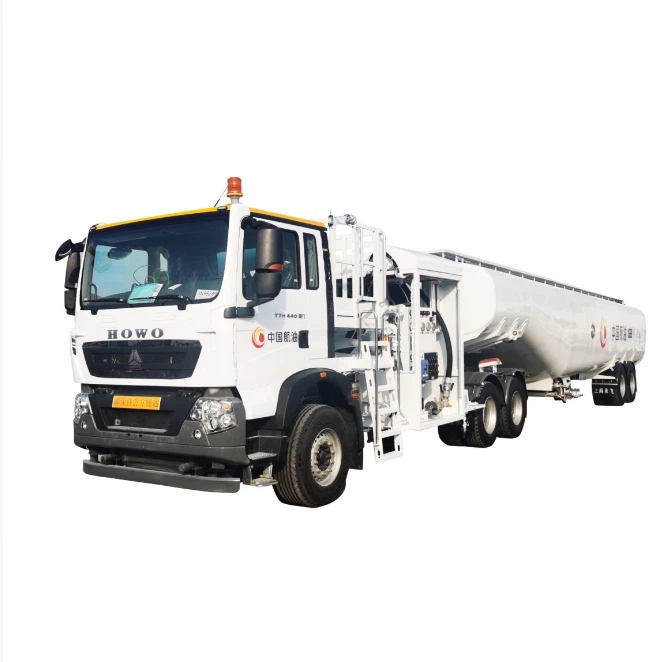

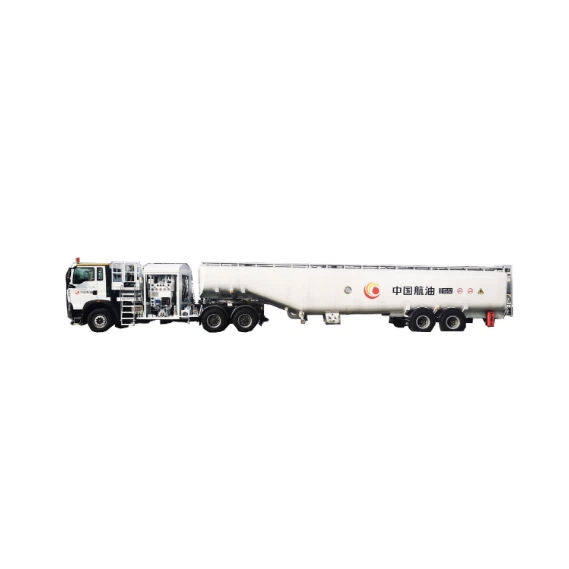

65000L Aircraft Refueler
ITEMS: 65000L Aircraft Refueler
Specified capacity, L: 65000
Standard Dimensions(mm)：
19760(L)*3000(W)*3230(H)

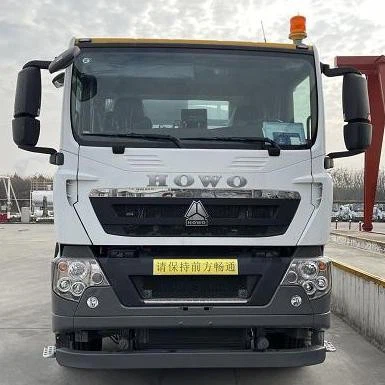

Chassis type: ZhongQi HOWO
Dual-hose refueling (up to 2400 L/min)
Single-hose refueling (up to 1200 L/min)
Tank capacity: 65000 L
±0.2% flow meter accuracy
- Product Introduction
Product Introduction

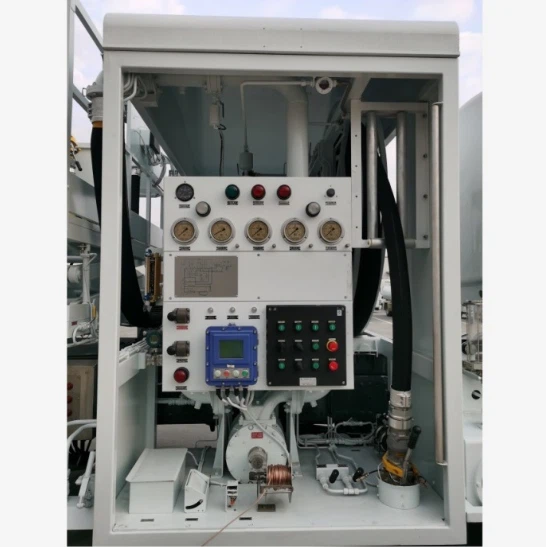

CF5750GJY Aircraft Refueller(SINOTRUK) can be divided into basic parts: a chassis, a fuel tank ,and a front cabinet, pumping system, pneumatic system, hydraulic system and the electrical system. It can be used for the aircraft fueling between the aircraft filling station and the landing field. The impurities and moisture were filtered from the fuel and the fuel flow can be exactly measured.
product parameters
| Products name | Aircraft Refueller | Rated Capacity | 65000 L |
| Products model | CF5750GJY | Max Flow Rate (Dual Hose) | 2400 L/min |
| Chassis type | SINOTRUK HOWO | Max Flow Rate (Single Hose) | 1200 L/min |
| Overall Dimensions (L×W×H) | 19760 × 3000 × 3230 mm |
Max Suction Flow Rate (Dual Deck Hose) |
600 L/min |
| Curb Weight | 22500 kg |
Max Suction Flow Rate (Single Reel Hose) |
300 L/min |
|
Maximum Gross Mass (Factory Specified) |
74630 kg | Max Bottom Loading Rate (Fuel Tank) | 2000 L/min |
| Filter Standard |
Complies with EI 1581 (5th Edition) |
Reel Hose (2.5") Length | 25 m |
| Flow Meter Accuracy | ±0.2% | Deck Hose (2.5") Length | Left 4.4 m, Right 4.6 m |
| Rated Working Pressure | 1 MPa | High-Speed Refueling | Dual-hose flow rate up to 2400 L/min, single-hose 1200 L/min |
Major Function
Refueling--aircraft could be fueled from fuel tank via double deck hose or single reel hose after filtration and measurement.
Defueling--aircraft could be defueled/drilled via double deck hose or single reel hose after filtration and measurement.
Filling--vehicle can be filled with fuel for storage or use In-tank cycle mixing(Operate as a) Mobile pumping unit
