Trelleborg AEROKLER CT Cold Temperature Aircraft Fueling Hose
The Trelleborg AEROKLER C is a premium lightweight hose designed specifically for aircraft ground fueling operations.
Fully compliant with EI 1529:2014 Grade 2 and ISO 1825:2017 Type C standards, it ensures safe, contamination-free transfer of jet fuel and petroleum products.
Recognized by major oil companies, this hose combines exceptional flexibility, durability, and semi-conductive properties to meet the rigorous demands of modern airport infrastructure.
- Product Introduction
Products Description

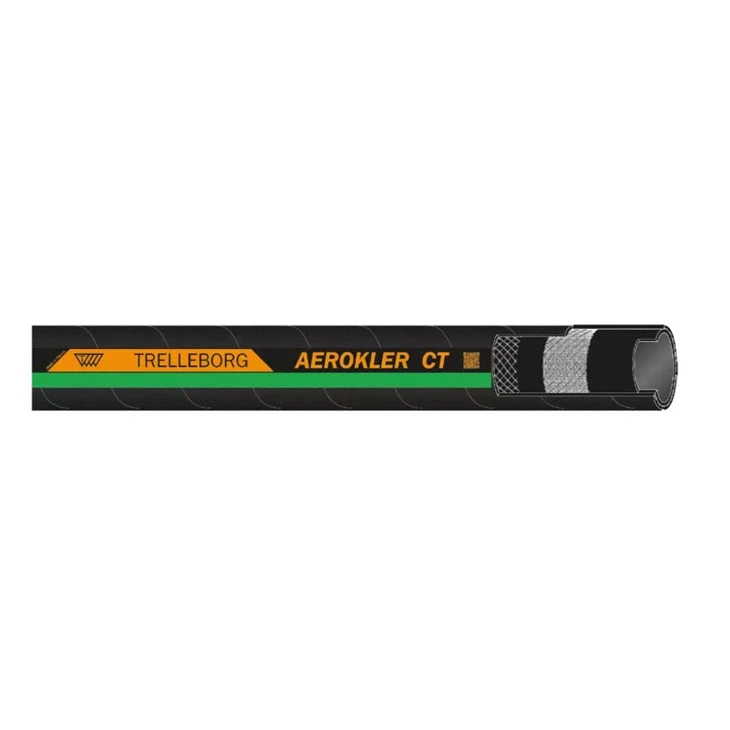

The Trelleborg AEROKLER CT is a specialized lightweight hose engineered for aircraft ground fueling in extreme cold environments. While standard hoses may stiffen or crack in freezing conditions, the AEROKLER CT remains fully flexible and operational down to -40°C, with no rubber cold embrittlement observed even at -48°C. Fully compliant with EI 1529:2014 (7th Edition), it ensures safe, contamination-free fuel transfer for airports in arctic or high-altitude regions.
Key Features & Benefits
Extreme Cold Performance: Operates reliably from -40°C to +100°C. Maintains flexibility where standard hoses fail; no cold embrittlement down to -48°C.
Full Compliance: Meets EI 1529:2014 (7th Edition) standards specifically for cold temperature applications.
Fuel Purity Protection: Smooth black NBR inner tube highly resistant to kerosene and aircraft fuels (aromatic content ≤30%), preventing contamination.
Safety & Durability: Semi-conductive outer cover (CR) for static dissipation (103Ω/m
Vacuum Resistance: Withstands max vacuum of 0.15 Bar while retaining ≥80% of internal diameter.
Ready-to-Install: Available in standard 40-meter lengths. Optional assemblies come pre-fitted with tin-plated brass couplings and forged aluminum safety clamps, individually tested with certificates.
Technical Specifications
| Feature | Specification |
|---|---|
| Application | Aircraft ground refueling in cold temperature environments (Kerosene/Jet Fuel ≤30% aromatics) |
| Standard Compliance | EI 1529:2014 (7th Edition) |
| Inner Tube | Black, smooth, kerosene-resistant NBR |
| Reinforcement | Synthetic braided textile |
| Outer Cover | Black, oil & weather-resistant CR (Chloroprene), fabric impression |
| Temperature Range | -40°C to +100°C (No embrittlement at -48°C) |
| Working Pressure | 20 Bar (300 PSI) |
| Burst Pressure | 80 Bar |
| Max Vacuum | 0.15 Bar (Retains 80% ID) |
| Standard Length | 40 meters (Custom lengths available) |
| Marking | Embossed: TRELLEBORG - AEROKLER C-CT - AIRCRAFT FUELING HOSE - COLD TEMPERATURE - EI 1529:2014 |
