100% Electric Aircraft Hydrant Dispenser
ITEMS:100% Electric Aircraft Hydrant Dispenser
✅ 100% Electric Operation: Powered by 72 kWh lithium batteries (noise <65 dB, emission-free)
✅ Low-Height Design: Only 2,000 mm tall for optimal underwing access
✅ Military-Grade Precision: Flow accuracy ±0.2%, compliant with API/IP/ASTM standards
✅ Extreme Environment Ready: Operates at -20°C to 60°C (optional low-temperature version available)
- Product Introduction
Product Introduction

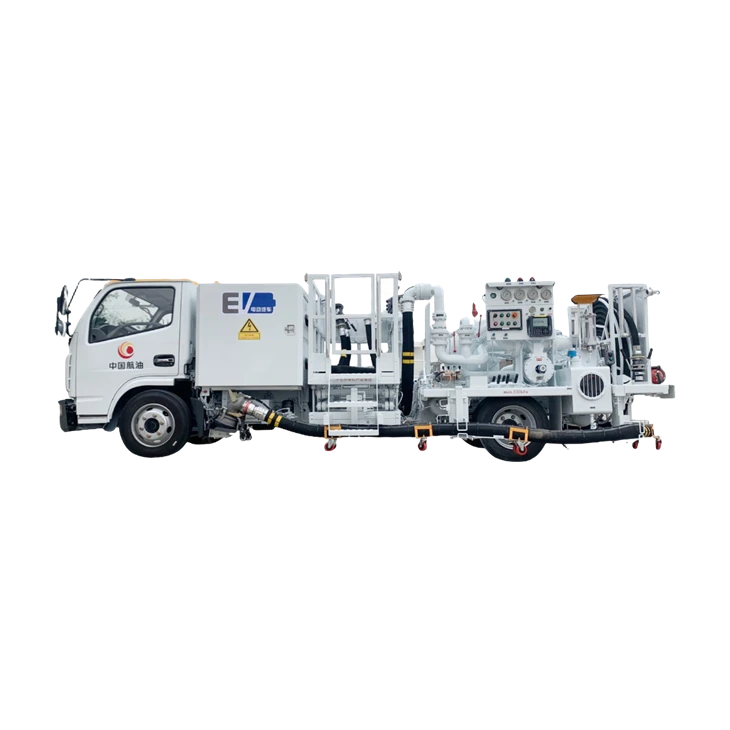

The CF5090GXJYD Electric Aircraft Hydrant Dispenser is a revolutionary zero-emission refueling vehicle designed for fast, safe, and eco-friendly aircraft fueling. With a compact 2-meter height, it efficiently services wide-body and narrow-body aircraft via underwing refueling, achieving 3,600 L/min dual-hose flow rates while meeting EI 1581 filtration standards.
Key Advantages
✅ 100% Electric Operation: Powered by 72 kWh lithium batteries (noise <65 dB, emission-free)
✅ Low-Height Design: Only 2,000 mm tall for optimal underwing access
✅ Military-Grade Precision: Flow accuracy ±0.2%, compliant with API/IP/ASTM standards
✅ Extreme Environment Ready: Operates at -20°C to 60°C (optional low-temperature version available)
Core Features
High-Speed Electric Refueling
Achieves 3x faster flow rates vs. conventional dispensers
Dual-fueling mode: Simultaneously refuel via deck hoses + reel hose
Eco-Friendly Design
Zero CO₂ emissions (compared to diesel-powered units)
Regenerative braking system extends battery life
Smart Safety Systems
Real-time fuel quality monitoring (water/content detection)
Automatic emergency shutoff for leaks/pressure anomalies
Applications
✈️ Commercial Airports: Ideal for Airbus A380/Boeing 777 underwing refueling
🛩️ Military Bases: Rapid refueling for fighter jets (JP-8 compatible)
🛄 Cargo Hubs: High-volume fuel transfer for freight fleets
Daily Maintenance Checklist
Visual Inspections
Static Grounding: Drag chain must contact ground.
Leak Check: No fuel/oil/water stains under vehicle.
Fire Extinguisher: Pressure gauge in green zone.
Flow Meter: Valid calibration seal intact.
Closed-Loop Sampler: Clean, undamaged.
Component Tests
Static Cable & Clamp: Tight connections, no corrosion.
Filter Status: Indicator legible (replace if obscured).
Auxiliary Tank: Fuel level ≤ 18% capacity.
Chassis Checks
Tires:
Pressure: 5.5 bar (cold).
Tread depth ≥ 3 mm.
Nut torque marks aligned.
Fluids:
Engine oil: Dipstick between MIN/MAX.
Coolant: Reservoir at marked level.
Functional Tests
Instrumentation & Electrical Components
Verify all gauges, lights, wipers, and horn operate normally
Interlock System Verification
Test Sequence:
a. Trigger any interlock point → Confirm:
Interlock indicator illuminates
Parking brake engages automatically
b. Reset interlock → Verify:
Indicator extinguishes
Brake releases only after pressing confirmation button
Hydraulic System Operation
Platform Test:
Raise/lower smoothly using electric controls
Verify stable positioning at any height
Reel Hose Test:
Extend/retract hose via manual valve
Confirm continuous movement without jerking
Emergency Shutdown Checks
Dashboard Switch:
Press → Engine must stop immediately
Requires manual reset to restart
Collision Shutdown Bars (Platform):
Trigger any bar within 10cm travel → Engine must cut off
Auto-reset allows normal restart
Technical Specification
| Parameter | Details |
|---|---|
| Chassis Type | Dongfeng Huashen Electric Chassis |
| Dimensions (L×W×H) | 6,865 × 2,720 × 2,000 mm |
| Max Gross Weight | 8,580 kg |
| Flow Rates |
Dual-deck hose: 3,600 L/min Single-reel hose: 1,200 L/min |
| Filtration | EI 1581-certified filter (removes 99.98% impurities) |
| Hose Configurations |
2.5" deck hose (4.4/4.6 m) 2" reel hose (25 m) 4" hydrant hose (10 |
| Lifting Platform Range | 900–4,000 mm (adjustable for all aircraft types) |
| Safety Protections | Insulation monitoring, short-circuit/overvoltage/over-temperature shutdown |
