25000L Professional Aircraft Refueler – CAUC Certified Aviation Fuel Tanker
ITEMS: Aircraft Refueler
✅ 25,000L large-capacity fuel tank
✅ Dual pressure (1000L/min) and gravity (210L/min) refueling
✅ EI1581-compliant filtration system
✅ Deadman control with auto-shutoff safety
✅ CAUC & IATA compliant operations
- Product Introduction
Product Introduction

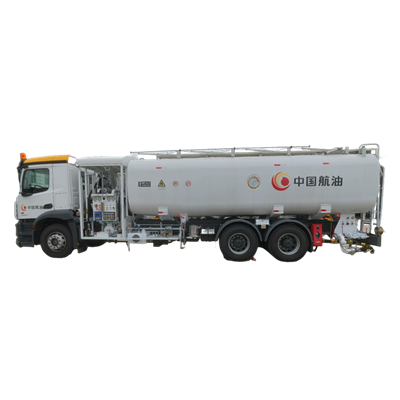

The CF5361GJY is a high-capacity aircraft refueler manufactured by Shanghai Chengfei Specialized Aviation Equipment Co., Ltd., certified by China Aviation Oil (CAUC). This advanced fuel truck combines safety, efficiency and reliability for commercial and military aviation applications.
product parameters
| Products name | Aircraft Refueller | Rated Capacity | 25000 L |
| Products model | CF5361GJY | Pressurized fueling rate | 1000 L/min |
| Chassis type | BENZ Arocs | Gravity refueling flow | 210 L/min |
| Overall Dimensions (L×W×H) | 10750× 2550 × 3220 mm | Defueling reel hose flow | 350 L/min |
| Curb Weight | 13300 kg |
Pressure coil 2 " hose length |
25 m |
|
Maximum Gross Mass (Factory Specified) |
33430kg |
Gravity reel 1.5 " hose length |
15 m |
| Filter Standard |
Complies with EI 1581 (Last Edition) |
Rated Working Pressure | 0.6 MPa |
| Flow Meter Accuracy | ±0.2% | Operating Temperature | -20°C to +50°C |
SAFETY SYSTEMS
Deadman Control System
Auto-shutoff after 2.5 minutes operation
Visual/audible warning at 2.5 minute mark
Emergency override available
Interlock Protection
8-point safety interlock prevents movement when:
Refueling hoses deployed
Aircraft fuel caps open
Wheel chocks in use
Static cable disconnected
Emergency Features
Platform & dashboard E-stop buttons
Automatic pressure relief (0.1-0.15MPa)
Dual static discharge cables (<10Ω resistance)
Options
Choose the plan that suits you best.
HEPC
Avery Hardoll
Carter
Whittaker
Hoses
Elaflex
Trelleborg
Meters
Isoil meter
TCS meter
deadmen
Delta Wireless Deadman
Service
MAINTENANCE SCHEDULE
Daily
- Check fluid levels
- Verify safety interlocks
- Inspect hoses/fittings
Weekly
- Test grounding system
- Cycle fuel through hoses
- Check brake system
Monthly
- Pressure test hoses
- Inspect filter elements
- Calibrate meters
Annual
- Full system inspection
- Filter replacement
- Structural integrity check
CERTIFICATIONS & COMPLIANCE
MH/T6005-2009 Aviation Refueling Standard
EI1581 Fuel Filtration Requirements
ISO 9001 Quality Management
CAUC Operational Compliance
