35000L Aircraft Refuele
25000L Aircraft Refueler with Platform
Specified capacity, L: 35000
Standard Dimensions(mm)：
13990(L)*3000(W)*3285(H)
Chassis type: Dong Feng
- Product Introduction
Product Introduction

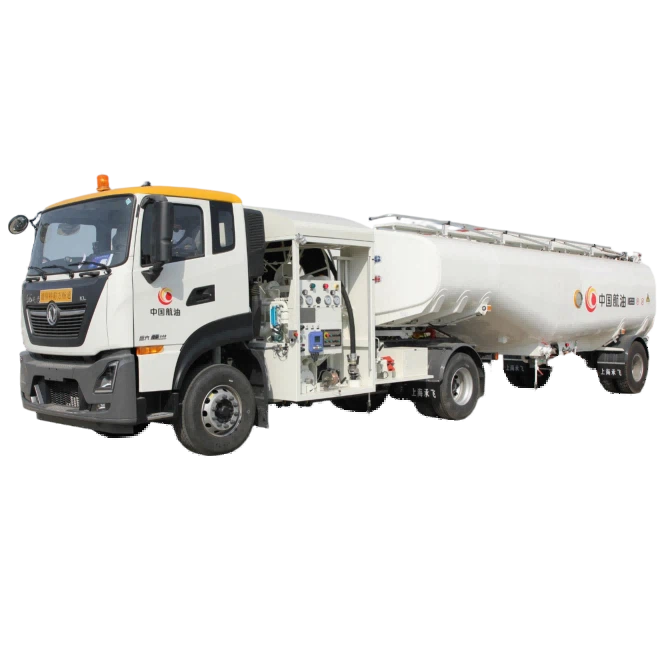

CF5441GJY Aircrat Refueller can be divided into basic parts: a chassis, a fuel tank .and a front cabinet, pumpingsystem, pneumatic system and the electrical system. lt can be used for the aircraft fueling between the aircraftfiling station and the landing field. The impurities and moisture were filtered from the fuel and the fuel flow can beexactly measured.
product parameters
| Products name | Aircraft Refueller | Rated Capacity | 35000 L |
| Products model | CF5441GJY | Single hose flow | 1000 L/min |
| Chassis type | Dong Feng |
Max Suction Flow Rate (Single Reel Hose) |
300 L/min |
| Overall Dimensions (L×W×H) | 13990 × 3000 × 3285 mm | MPa / Working pressure | 0.6 |
| Gross mass | 14250 kg | Flow Meter Accuracy | ±0.2% |
|
Maximum Gross Mass (Factory Specified) |
41800 kg | Operating Temperature | -20°C to +50°C |
Major Function
Refueling--aircraft could be fueled from fuel tank via single reel hose after filtration and measurement.
Defueling--aircraft could be defueled/drilled via single reel hose after filtration and measurement.
Filling--vehicle can be filled with fuel for storage or useIn-tank cycle mixing (Operate as a)Mobile pumping unit
Options
Choose the plan that suits you best.
HEPC
Avery Hardoll
Carter
Whittaker
Hoses
Elaflex
Trelleborg
Meters
Isoil meter
TCS meter
deadmen
Delta Wireless Deadman
Any requirement?
Are you interested in fuel vehicles, similar to the following questions?
Which country (airport) is the purchase requirement for?
Are there any special local requirements?
Such as flameout refueling?
Required operating temperature range?
Are low-temperature resistant accessories needed?
Which fuel types that might need to be handled by these trucks in the future?
Can a flat end mill drill?left-hand drive or right-hand drive?
